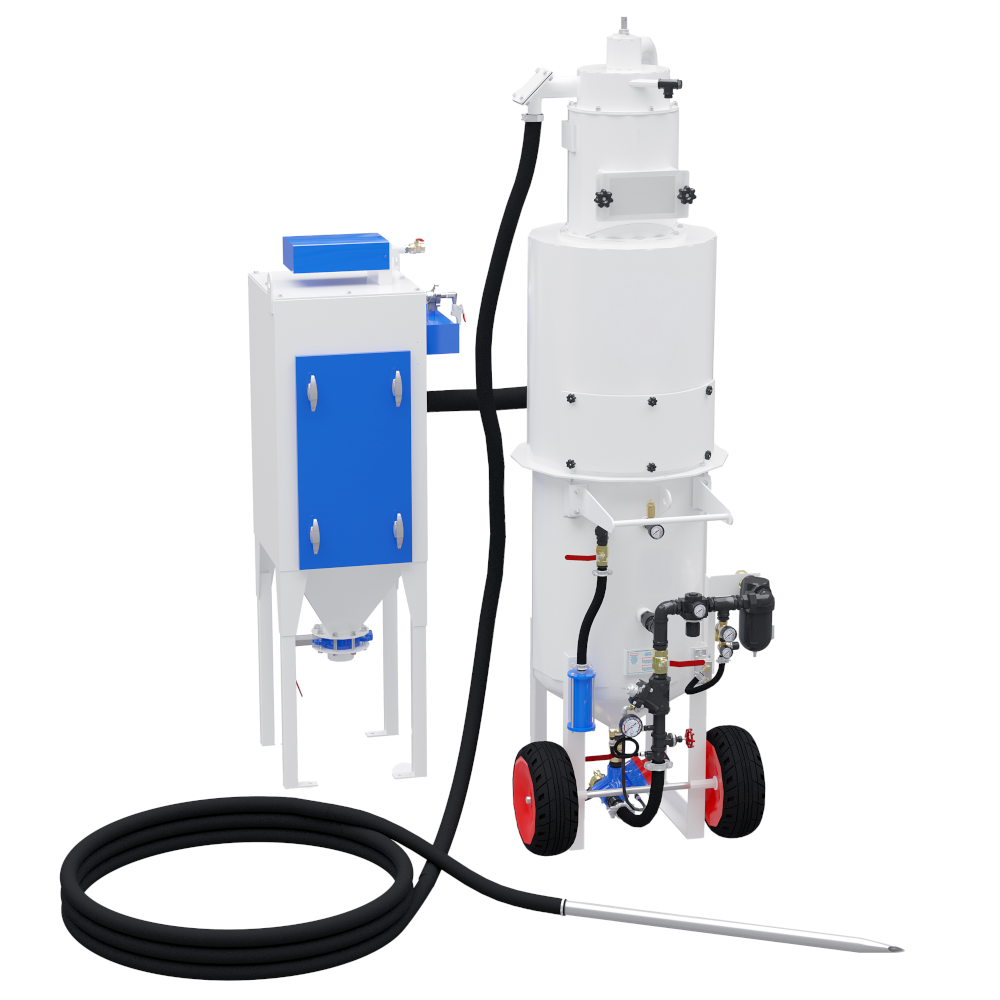

Abrasive Recycling Systems REC2 Serie
The NORBLAST® REC2 system ensures efficient suction and separation of recyclable abrasives. It consists of a pneumatic suction head mounted directly on the dust collector, which is itself connected to a separator installed on the storage silo for recycled abrasives. This setup is designed to be integrated with a standard 200-liter blast pot, model NOB200CE-3S. The system operates entirely with compressed air, requiring no electrical connection.
100 % AUTONOMOUS
REDUCES ABRASIVE COSTS
NO ELECTRICAL
CONNECTION REQUIRED
SAVES TIMES
DURING REFILLING
How does it work?
Dust and fine particles are removed from the reusable abrasive using a fully adjustable pulsed air jet system. This setting allows the separation process to be adapted to the type and size of the abrasive. Larger debris is retained by a sieve installed at the base of the silo. The cleaned abrasive, free of dust and impurities, is then stored in the silo and is ready to be automatically reloaded into the blast pot as soon as it is depressurized.
Technical Specifications for Dust Collector
| Specifications | Value |
|---|---|
| Max Airflow | 4 250 L/min |
| Filter Cartridge | 660 x 320 mm |
| Particle Discharge | Butterfly valve |
| Max Pressure | 7 bar |
| Dimensions (L × W × H) | 800 x 650 x 2 050 mm |
| Weight | 180 kg |
Technical Specifications for Silo Mounted Separator
| Specifications | Value |
|---|---|
| Max Airflow | 4 250 L/min |
| Suction Hose | 10 m + Suction Wand |
| Interior Coating | Rubber |
| Max Pressure | 7 bar |
| Dimensions (L × W × H) | 750 x 750 x 1 550 mm |
| Weight | 180 kg |
