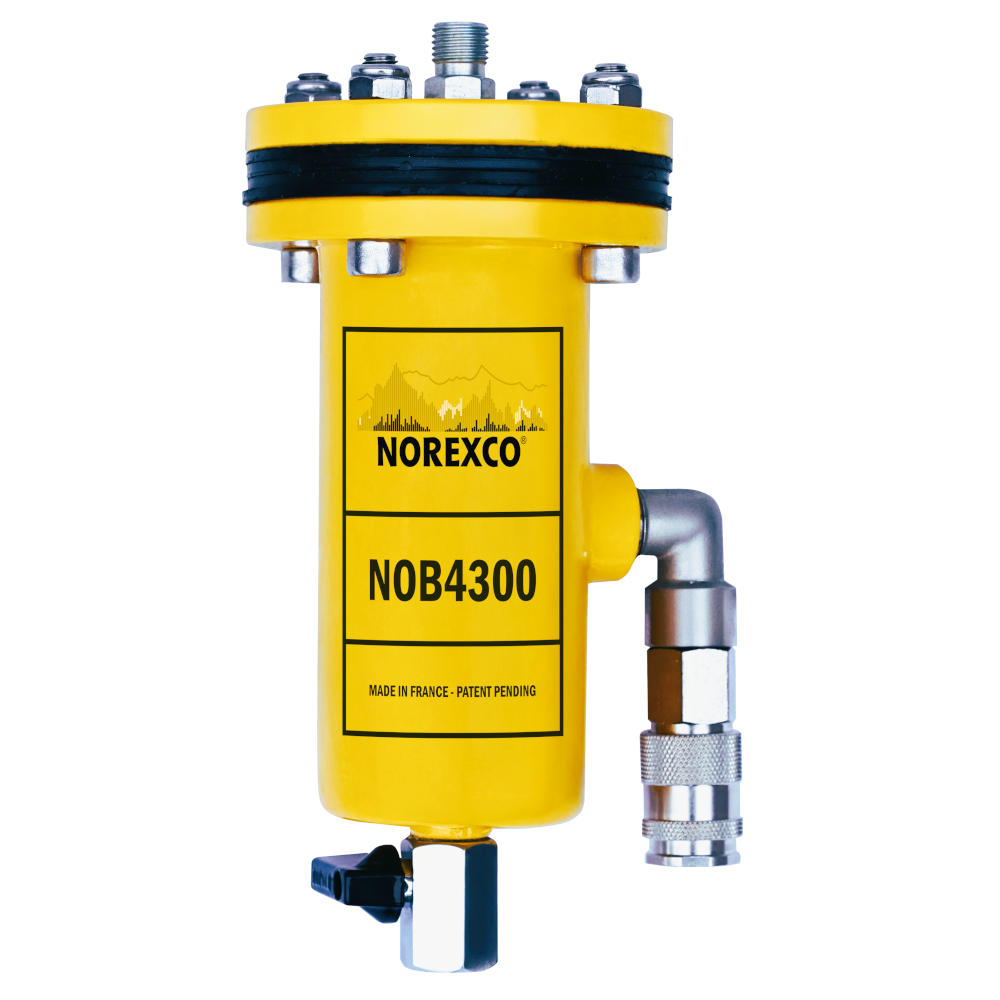

Breathable Air Filter NORBLAST®
The NORBLAST® air filter purifies compressed air intended for protection helmets by removing oil, odors, and micro-particles. Compact and robust, it connects directly to the blast pots to deliver filtered air. Its slim design allows for easy installation with minimal space required.
 |
WarningThe NOB4300 filter does not remove carbon monoxide (CO) or other toxic fumes. Therefore, the compressed air supplied by the compressor must be free of such contaminants. |
 |
Safety RecommendationTo ensure optimal performance, the filter cartridge must be changed regularly based on usage :
|
Multi-Stage Filtration Process
Compressed air enters from the top of the cartridge and begins a downward filtration process. Filtered air exits laterally to connect to the blasting helmet.
- Activated Alumina: absorbs moisture and oil vapors
- Activated Carbon: neutralizes odors
- Respiratory Felt: captures residual particles
Reference
| N° | Ref. | Description |
|---|---|---|
| NOB4300 | Inline filter with cartridge, seals, purge valve, outlet valve, and quick-connect fitting for remote control NOB2080 and NOB2030. (Adapter kit NOB4305 sold separately for NOB2080.) | |
| NOB4315 | Complete NOB4300 filter with adapter for NOB5000 remote control. | |
| NOB4320/2 | Complete NOB4300 filter with adapter for SOFTGOM® 18–35 remote control. | |
| 1 | NOB4321 | Body |
| 2 | NOB4311 | Seal |
| 3 | NOB4310 | Cartridge |
| 4 | NOB1222 | Bolt |
| 5 | R92/03-1 | 3/8″ Elbow FxM |
| 6 | NOB4025/3 | 3/8″ Male Quick-Connect Fitting |
| 7 | VA02 | 1/4″ Purge Valve FxF |
