NORBLAST® Cabinet NOB5200
The NOB5200 cabinet is designed for intermittent use, exclusively with glass beads or plastic media. Without a dust separator, it must not be used with angular abrasives. Delivered as a kit, it is easy to assemble and allows the treatment of parts up to 1200 mm. For more intensive use, choose the NOB5260 model.
Key advantages…
- Triple-door access
- Gun equipped with a 6 mm nozzle
- 575 x 265 mm window with protective film
- Adjustable abrasive flow & pressure regulator
| Technical Specifications NOB5200 | |
|---|---|
| Media grain size | 0,2 – 0,4 mm |
| Required air flow | 600 l/min |
| Required air pressure | 5.5 bar |
| Air inlet diameter | 3/8″ |
| Dimensions (L x W x H) | 1320 x 930 x 1670 mm |
| Side doors | 500 x 495 mm |
| Front door | 1170 x 307 mm |
| Weight | 125 kg |

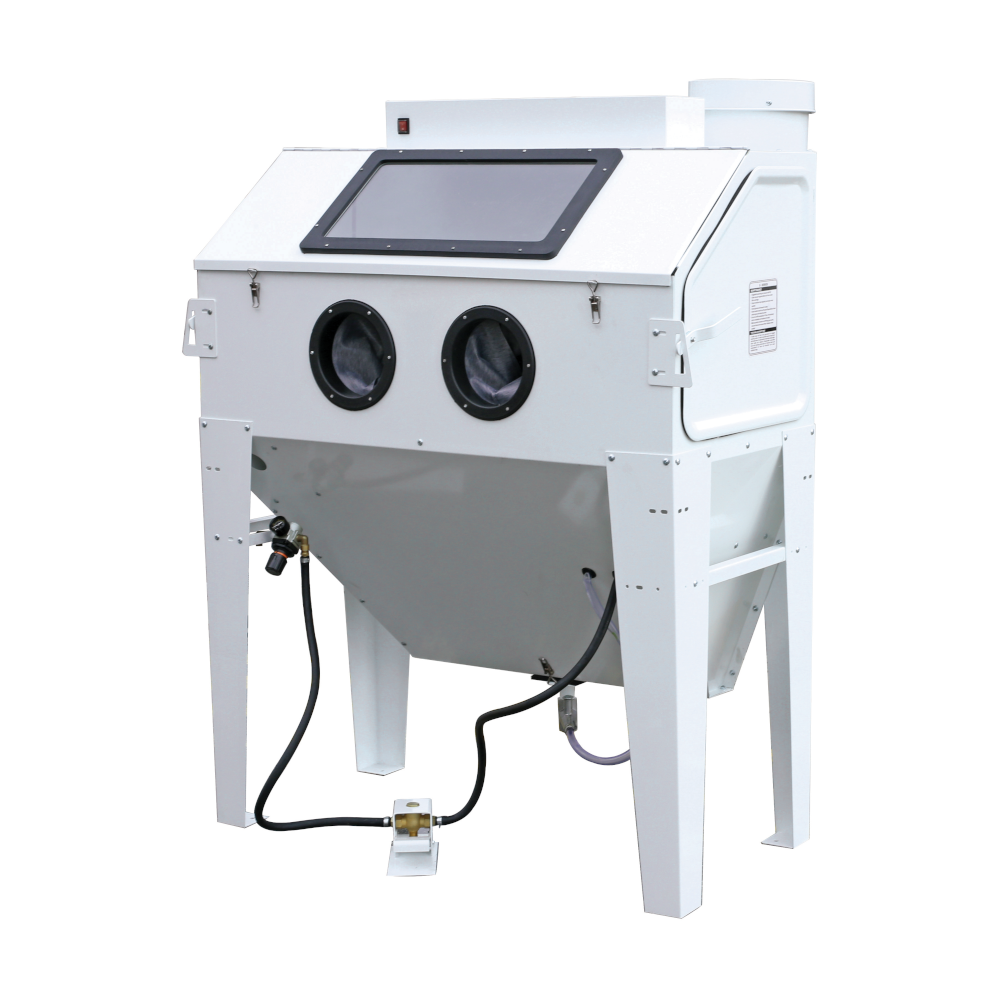

NORBLAST® Cabinet NOB5260
This premium sandblasting cabinet offers robustness and reliability for regular use. Fully assembled and ready to use, it features a 0.7 m³ chamber allowing treatment of parts up to 900 mm long using all types of recyclable abrasives. Equipped with a high-end suction blast gun (NOB5261), it delivers optimal performance.
Key advantages…
- Side access
- Gun equipped with an 8 mm nozzle
- Dust collector with an integrated filter
- 570 x 220 mm window with protective film
- Adjustable abrasive flow & pressure regulator
| Technical Specifications NOB5260 | |
|---|---|
| Media grain size | 0,4 – 1.0 mm |
| Required air flow | 1400 l/min |
| Required air pressure | 5.5 bar |
| Air inlet diameter | 1/2″ |
| Dimensions (L x W x H) | 1300 x 1625 x 2220 mm |
| Portes latérales | 755 x 855 mm |
| Weight | 250 kg |
