NORBLAST® Extraction Fans
in stock

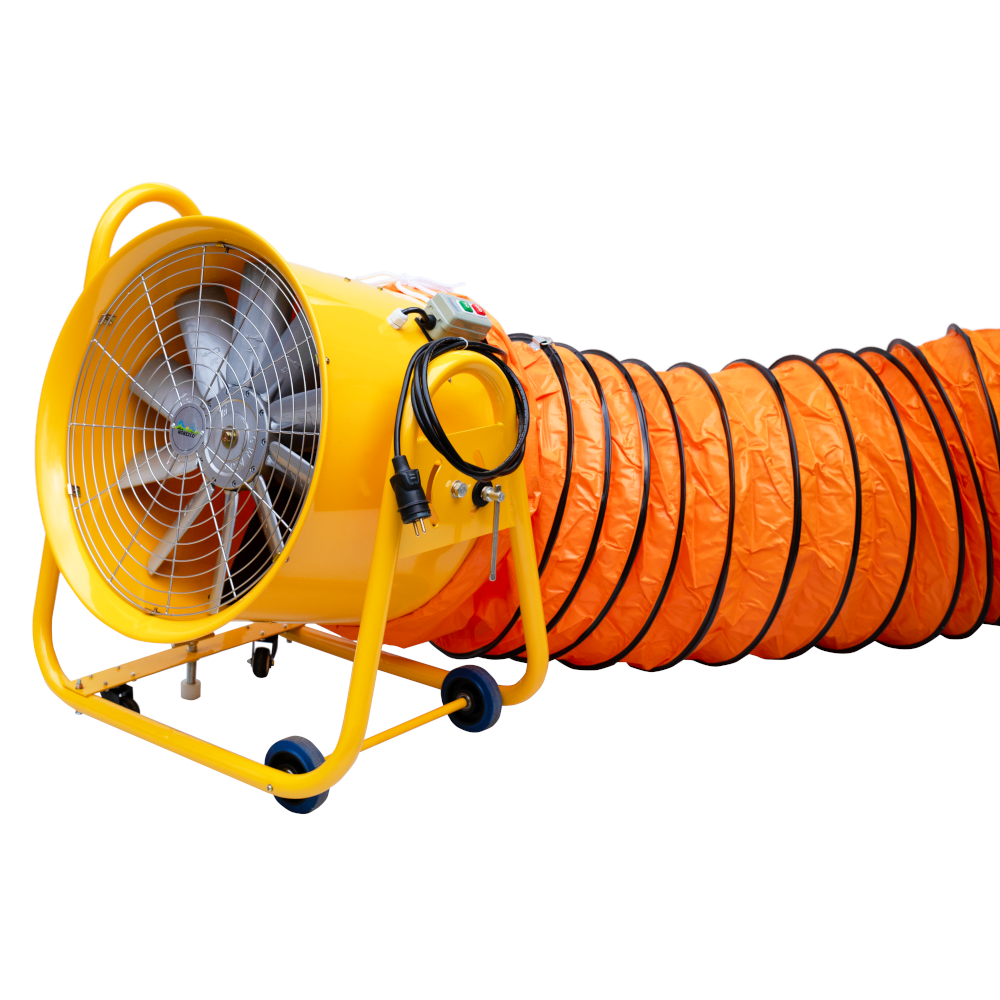

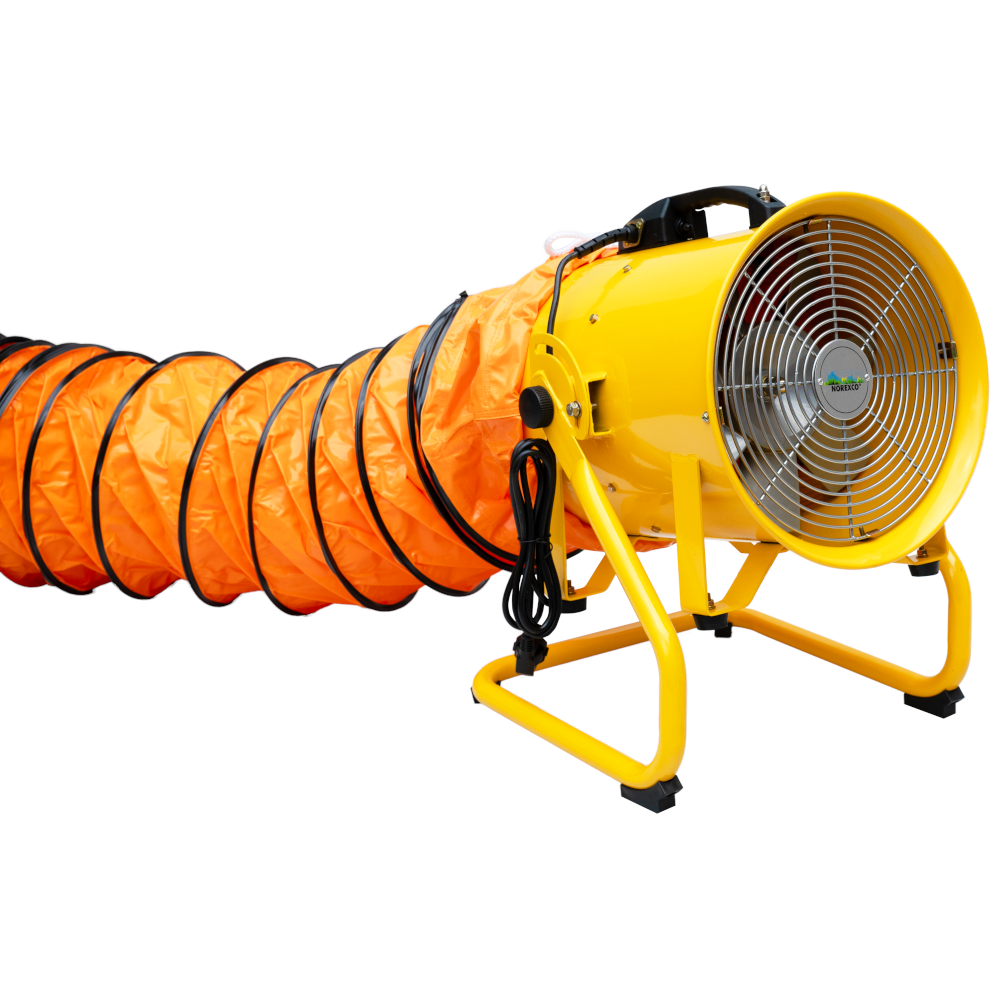

The VE30, VE40 and VE50 extraction fans ensure efficient evacuation of dust-laden air in confined spaces. Supplied with a 10-meter flexible duct, they help maintain a clean and healthy work environment, making them particularly suitable for indoor soft blasting operations.
 |
Which one to Choose?Adapt the size to your needs: |
|
Smart TipPosition the duct in a clear space and check it regularly to ensure optimal airflow and long-lasting performance. |
Technical Specifications
| Specifications | VE30 | VE40 | VE50 |
|---|---|---|---|
| Airflow | 3700 m³/h | 5760 m³/h | 8100 m³/h |
| Motor power | 520 w | 1100 w | 800 w |
| Power supply | 230 VAC | 230 VAC | 230 VAC |
| Current draw | 3.5 A | 5 A | 3.4 A |
| Protecting rating | IP24 | IP24 | IP24 |
| Rotation speed | 2800 t/min | 2800 t/min | 1350 t/min |
| Static pressure | 345 Pa | 700 Pa | 206 Pa |
| Dimensions (L × W × H) | 400 x 380 x 500 mm | 520 x 490 x 510 mm | 700 x 460 x 580 mm |
| Diameter | 300 mm | 400 mm | 400 mm |
| Max. duct length | 10 m | 10 m | 10 m |
| Weight | 12 kg | 25 kg | 37 kg |
