NORBLAST® Internal Blasting System
Blasting the inside of pipes is a complex task that requires meticulous preparation to ensure perfect adhesion of protective coatings. NORBLAST® internal blasting systems are designed to meet these challenges, delivering unmatched performance even in the tightest and hardest-to-reach spaces.

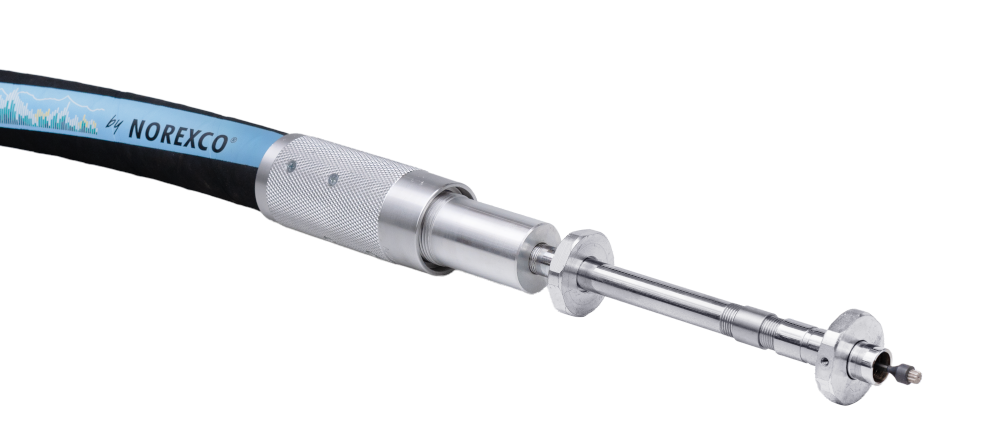

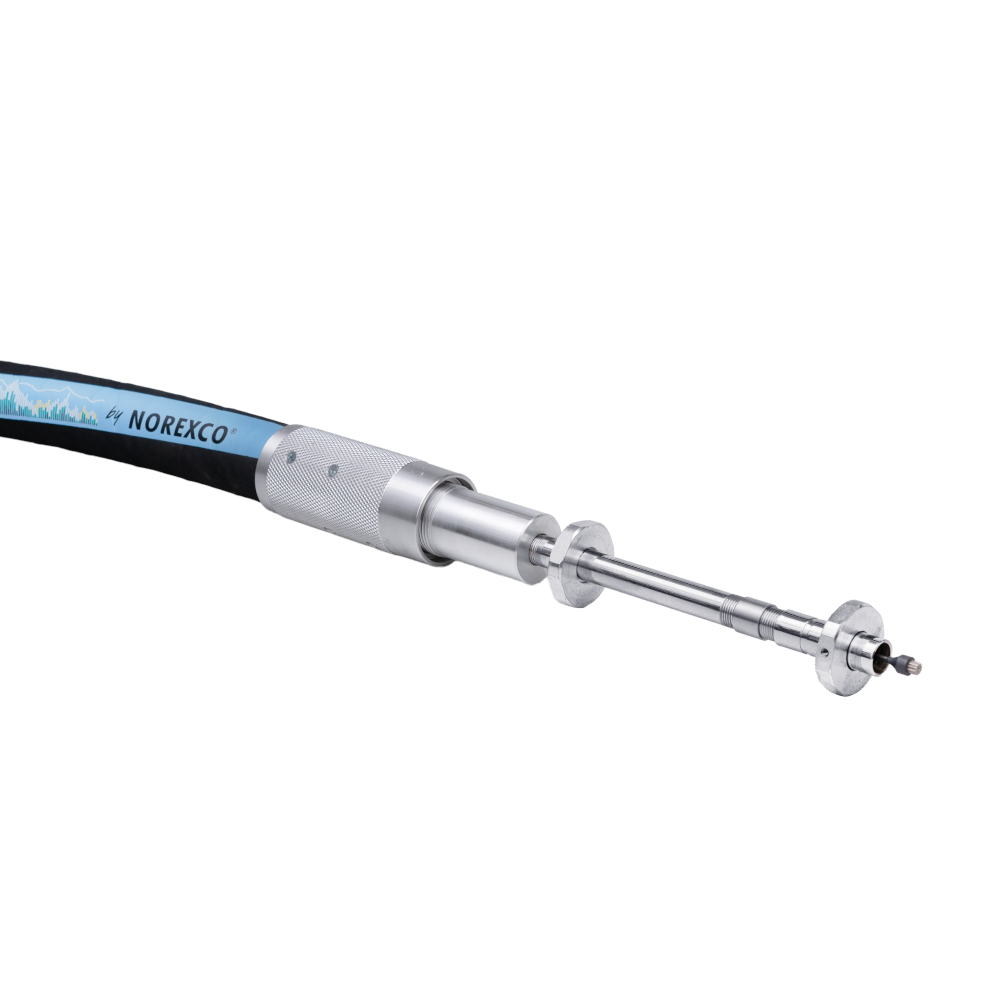

NORBLAST® Internal Blasting System NOB1/1 – Pipes 19 to 50 mm
Designed for direct mounting on a 13 mm (1/2″) blasting hose, the NORBLAST® NOB1/1 delivers a round jet with a 45° attack angle, thanks to its integrated deflector. Ideal for highly localized interventions and small precision jobs.
| Ref. | Description |
|---|---|
| NOB1/1 | Internal blasting system for pipes Ø19 to Ø50 mm |

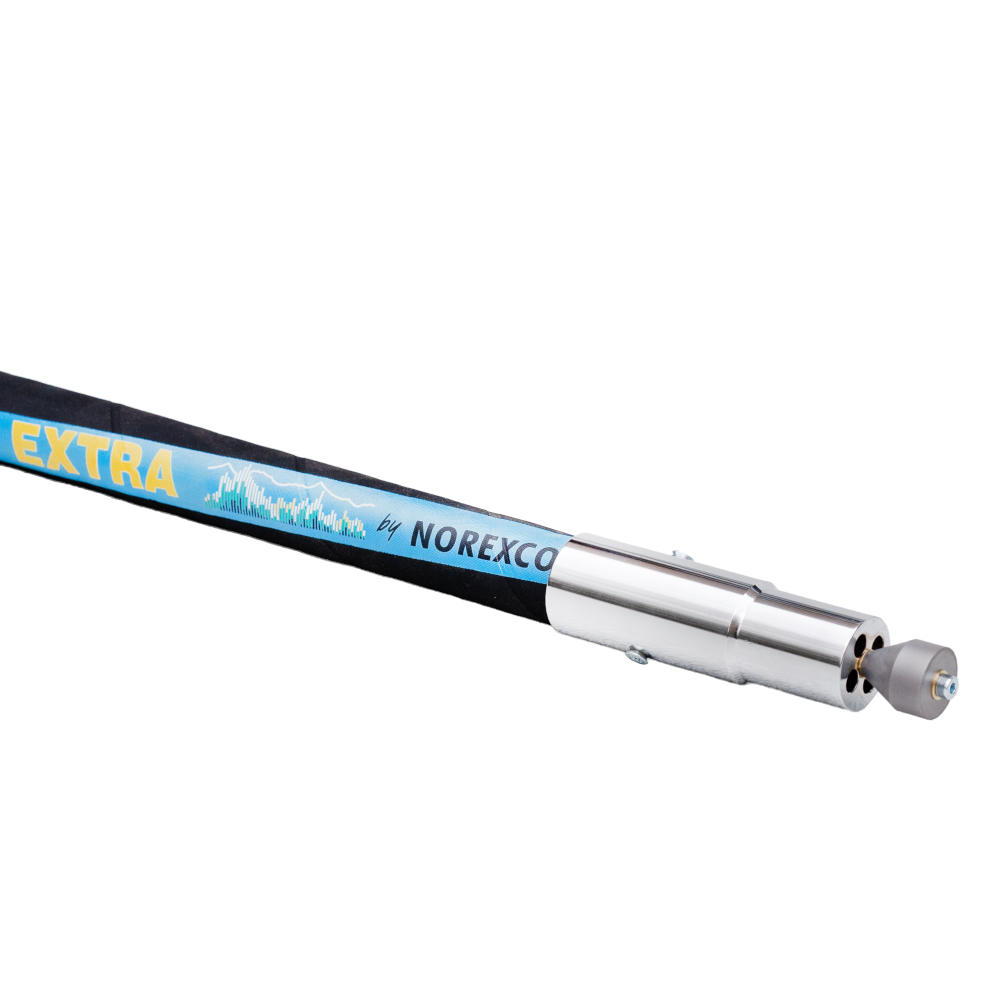

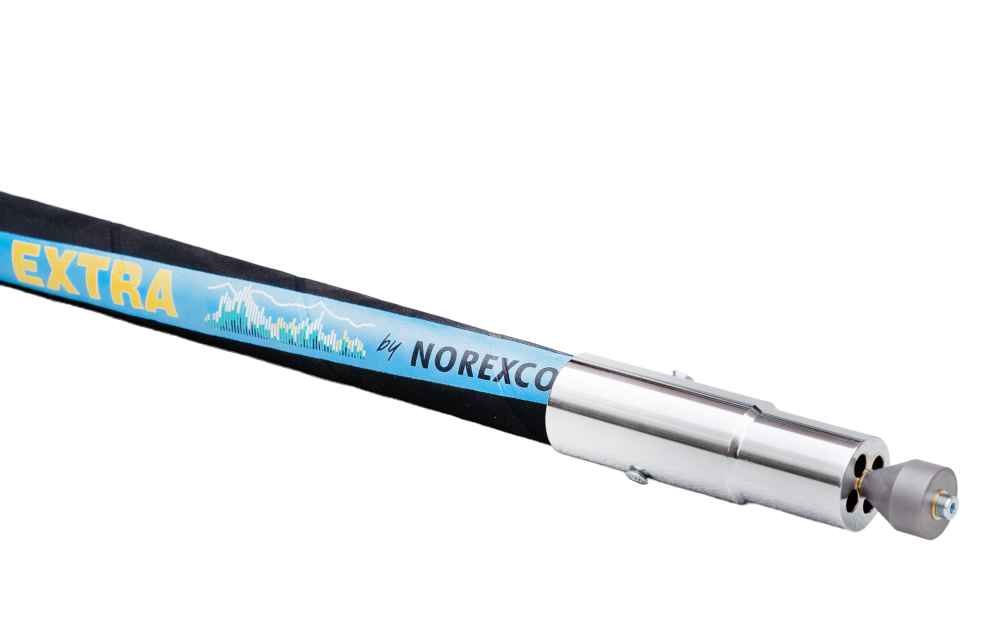

NORBLAST® Internal Blasting System NOB1 – Pipes 35 to 75 mm
Designed for direct mounting on a 13 mm (1/2″) blasting hose, the NORBLAST® NOB1 delivers a round jet with a 45° attack angle, thanks to its integrated deflector. Ideal for highly localized interventions and small precision jobs.
FOR SMALL DIAMETERS
COMPATIBLE WITH NS1013
| Ref. | Description |
|---|---|
| NOB1/1 | Internal blasting system for pipes Ø19 to Ø50 mm |

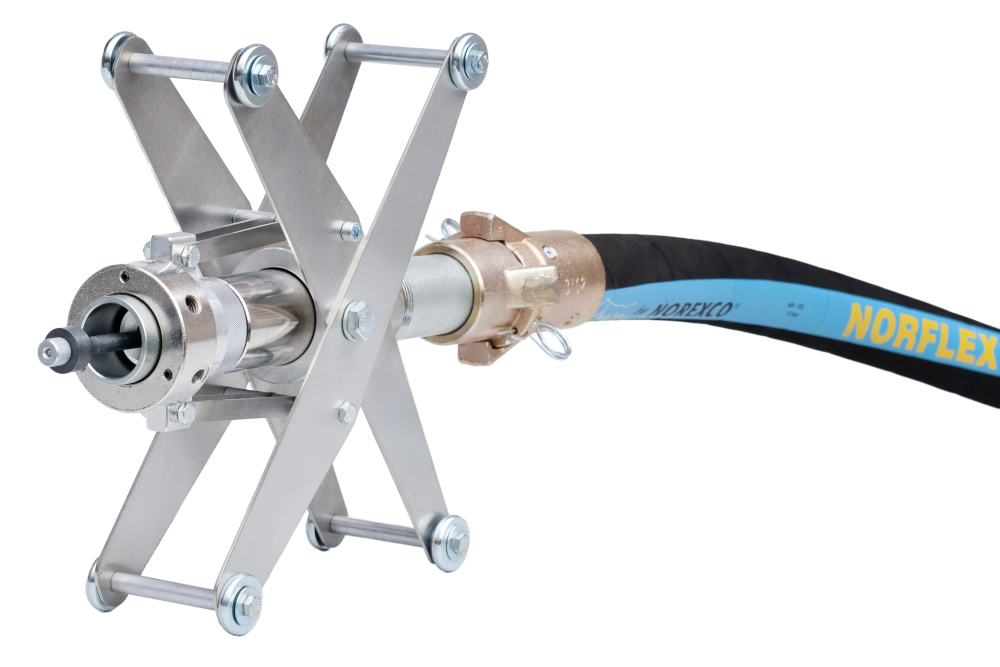

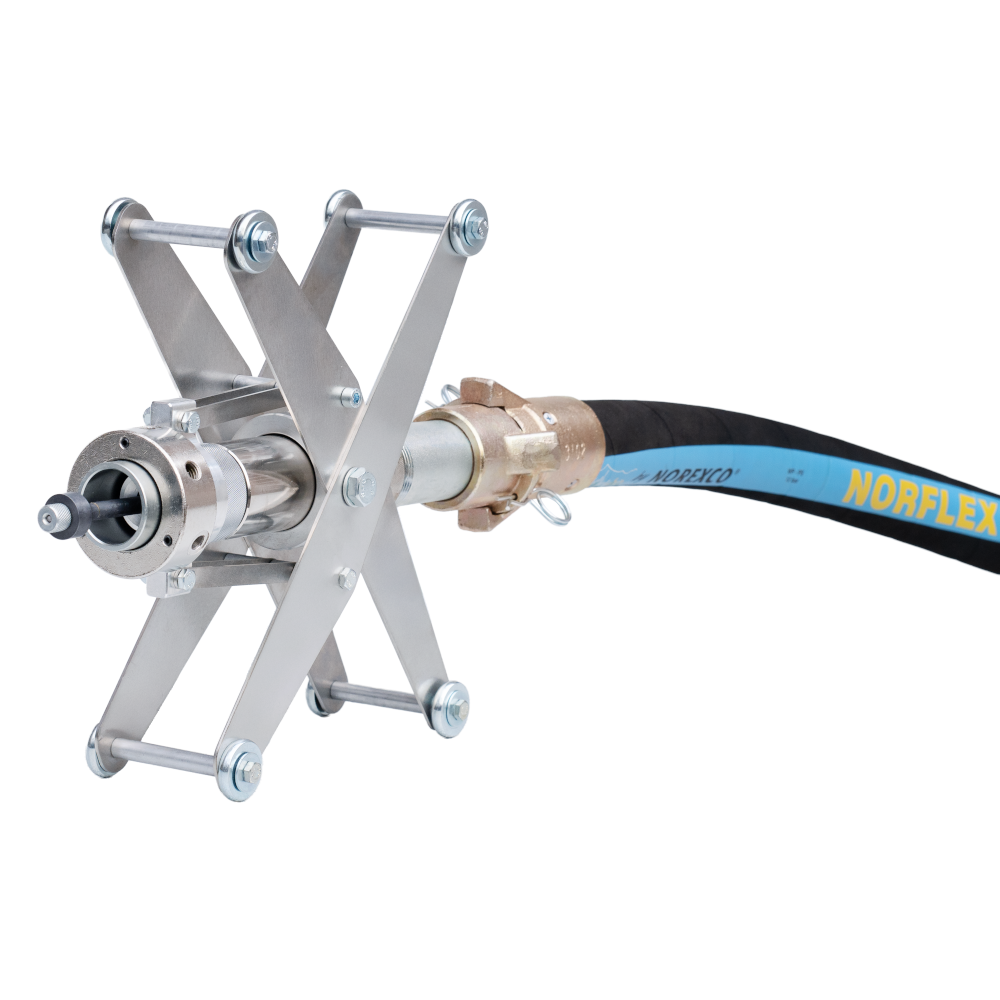

NORBLAST® Internal Blasting System NOB2/1 – Pipes 75 to 300 mm
The NOB2/1 internal blasting system is designed for the internal cleaning of pipes from 75 to 300 mm in diameter, using an adjustable centering carriage that ensures optimal positioning within the tube. Its blasting head features a built-in 45° deflector, allowing 360° abrasive projection for uniform and efficient internal surface treatment.
The NOB2/1 is compatible with the NS1032 blasting hose (Ø32×48 mm). It comes with a standard Ø13 mm nozzle, ready to use for immediate operation.
360°
PROJECTION
COVERAGE
HEAD ONLY:
75 TO 125 MM
HEAD+
CARRIAGE :
125 TO 300 MM
| Ref. | Description |
|---|---|
| NOB2/1 | Internal blasting system with blasting head that features a built-in 45° deflector for pipes Ø75 to Ø300 mm |

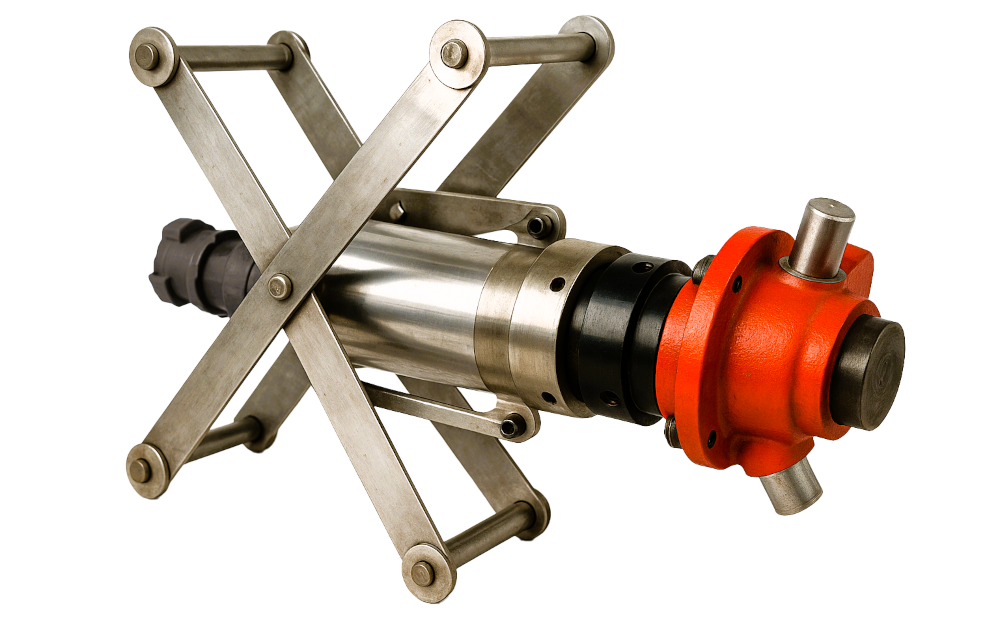

NORBLAST® Internal Blasting System NOBB4/S – Pipes 200 to 430 mm
The NOB4/S internal blasting system enables the cleaning of pipe interiors from 200 to 430 mm in diameter, using an adjustable centering carriage according to the pipe’s diameter. The rotating head is designed to hold two NY60 nozzles (not included) and rotates slowly to ensure uniform blasting around the full inner circumference.
| Ref. | Description |
|---|---|
| NOB4/S | Internal blasting system for pipes Ø200 to Ø430 mm |

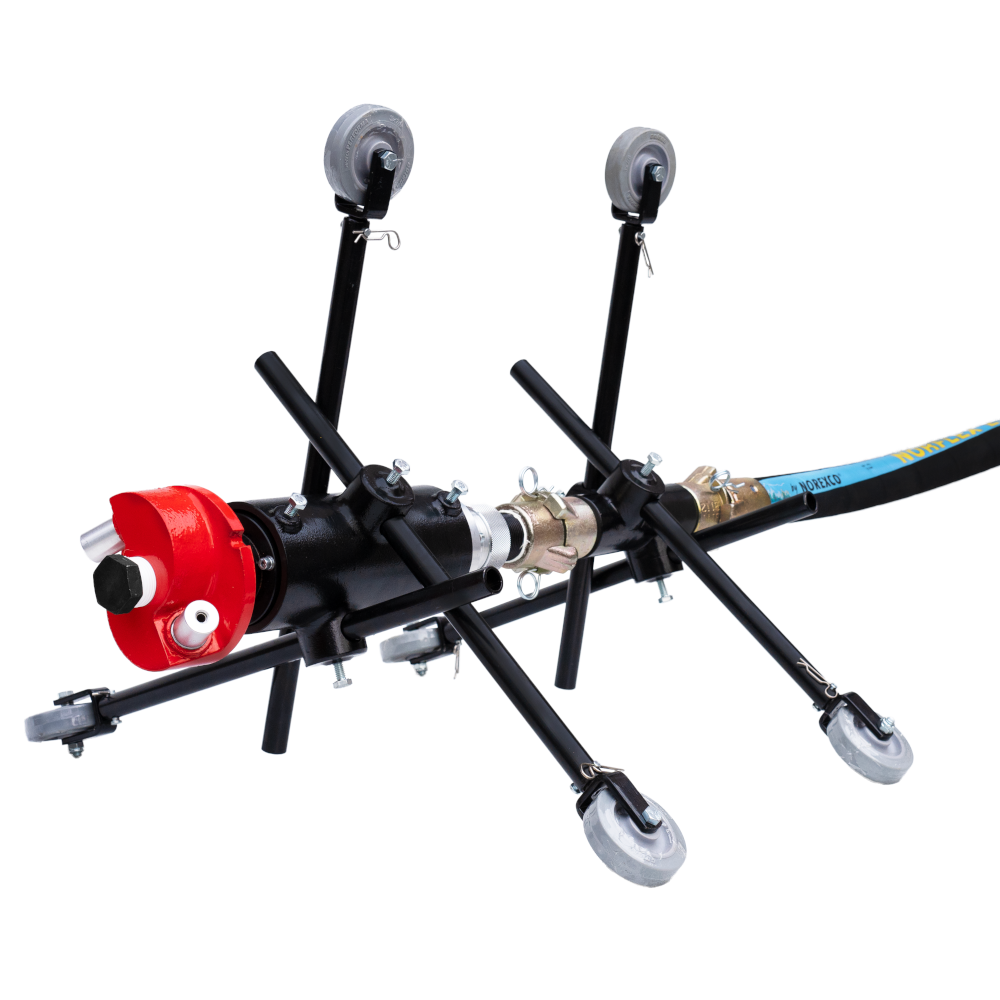

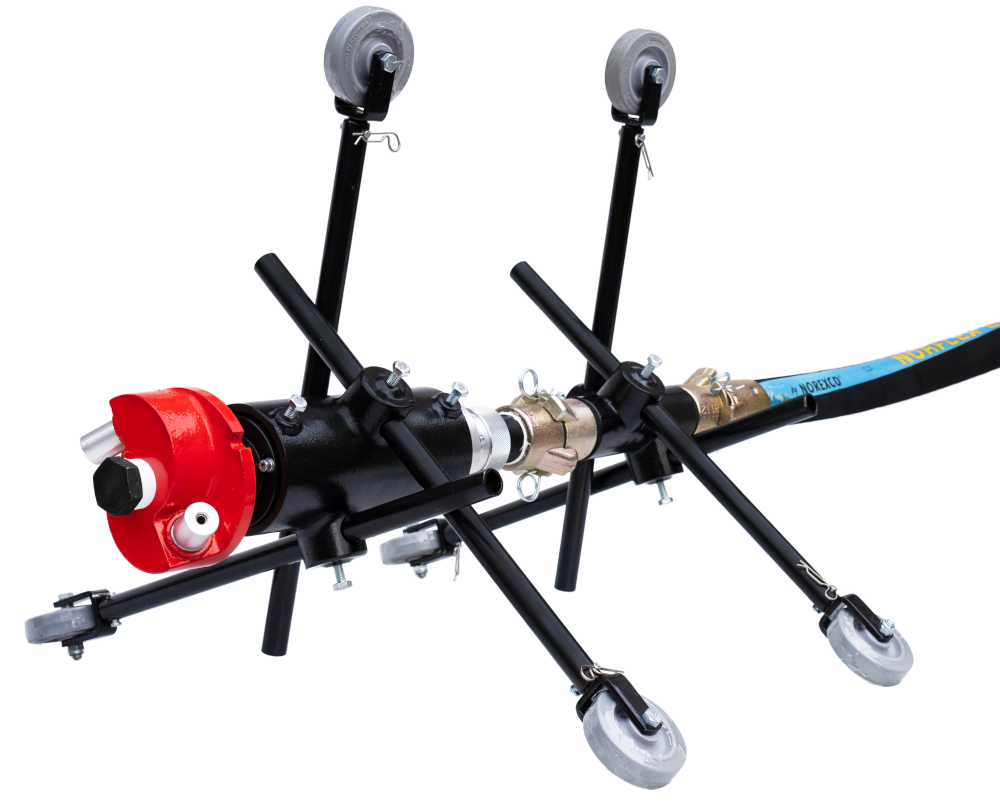

NORBLAST® Internal Blasting System NOB4 – Pipes 300 to 900 mm
The NOB4 internal blasting system is designed for the cleaning of pipes with diameters ranging from 300 to 900 mm. It is delivered with a set of arms of different lengths, selected according to the diameter of the pipe to be treated. Once the appropriate arms are installed, their length is adjusted to precisely center the blasting head inside the pipe.
| Ref. | Description |
|---|---|
| NOB4 | Internal blasting system for pipes Ø300 to Ø900 mm |
 |
Warning: nozzles not included |
| We recommend the following nozzles : | |
|---|---|
| Internal Blasting System | Nozzles (X2) |
| NOB4 – pipes from Ø300 to Ø500 mm | NY80/80 |
| NOB4 – pipes from Ø500 to Ø900 mm | NY95/100 |

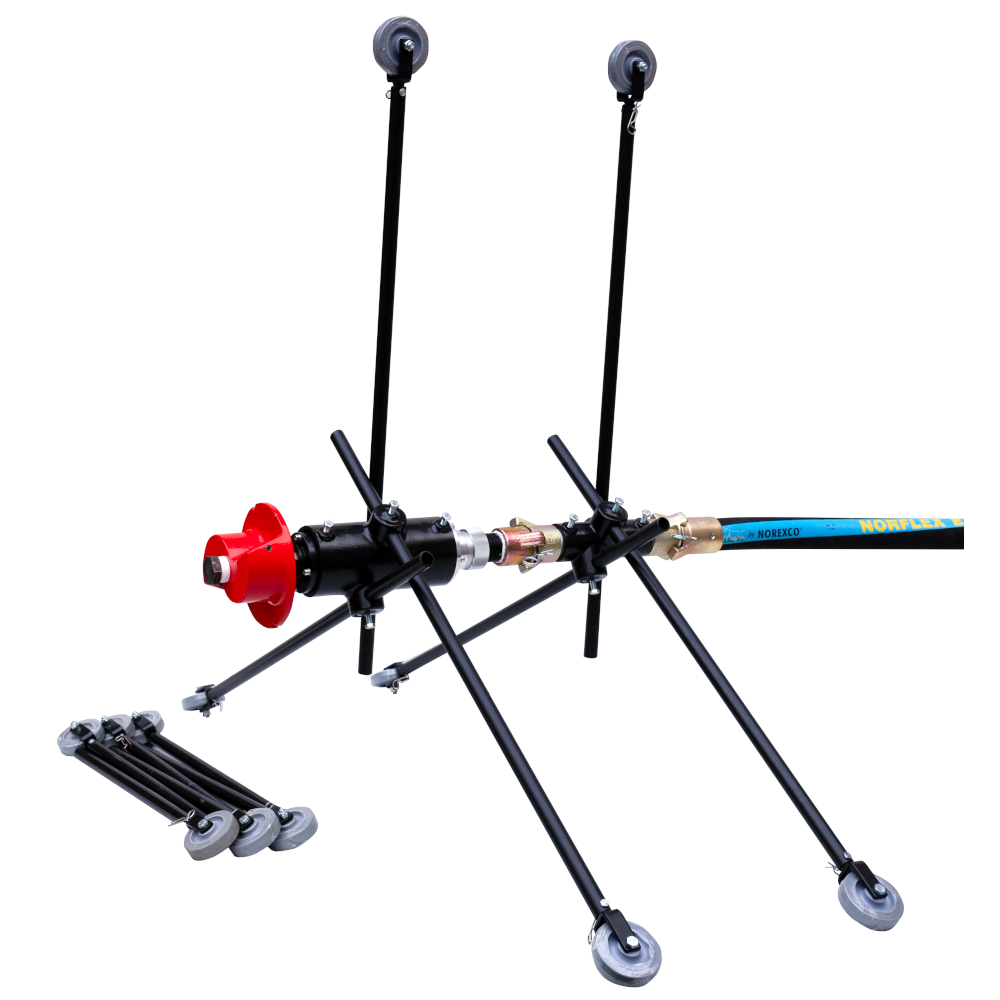

NORBLAST® Internal Blasting System NOB4/J – Pipes 1000 to 1500 mm
The NOB4/J is specially designed for internal treatment of large-diameter pipes, from 1000 to 1500 mm. It comes with a large-format rotating head and long support arms. Once the correct arms are installed, their length is adjusted to precisely center the tool inside the pipe.
| Ref. | Description |
|---|---|
| NOB4/J | Internal blasting system for pipes Ø1000 to Ø1500 mm |
|
Warning: nozzles not included |
| We recommend the following nozzles : | |
|---|---|
| Internal Blasting System | Nozzles (X2) |
| NOB4/J | SX95 or NX95 |
