NORBLAST® Pneumatic Vacuum System – 200L
in stock
The NOB5310 pneumatic vacuum system is designed to efficiently recover small amounts of abrasive or dust generated during blasting operations. Powered by two air-driven venturis, it delivers extremely powerful suction without the need for an electrical connection. Available with or without a 200L drum, it combines performance, flexibility, and user-friendliness to meet your needs.
ULTRA-EASY
USE AND
CONNECTION

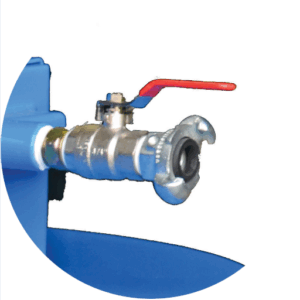

COMPATIBLE WITH ALL
RIBBED 200L DRUM
SYSTEMS
ULTRA-POWER-
FUL SUCTION
Key Advantages...
- Dual venturi for ultra-powerful suction
- Operates without electricity
- Compatible with all 200L ribbed drums
- Suction capacity up to 1 ton/hour
- Filtered exhaust air, dust-free
Warning
 |
Always ensure there’s a clear air passage inside the suction tube. Do not completely block the airflow. THE DRUM IS NOT DESIGNED TO WITHSTAND VACUUM PRESSURE |
Technical Specifications
| Specification | Value |
|---|---|
| Suction capacity | 1000 kg/h |
| Air consumption | 4300 l/min |
| Suction hose diameter | 1″ 1/4 |
| Suction hose length | 10 m |
| Drum diameter | 625 mm |
| Drum height | 1280 mm |
| Total weight | 38 kg |
Reference
| N° | Ref. | Description |
|---|---|---|
| NOB5310 | Vacuum system with 200L drum, 3/4” air valve, air filter, 10 m hose, nozzle | |
| NOB5300 | Same as NOB5310 but without the drum | |
| 1 | NOB5301 | Empty 200L ribbed drum |
| 2 | NOB5302 | Air filter |
| 3 | NOB5303 | 10 m flexible hose |
| 4 | NOB5304 | Suction nozzle |
