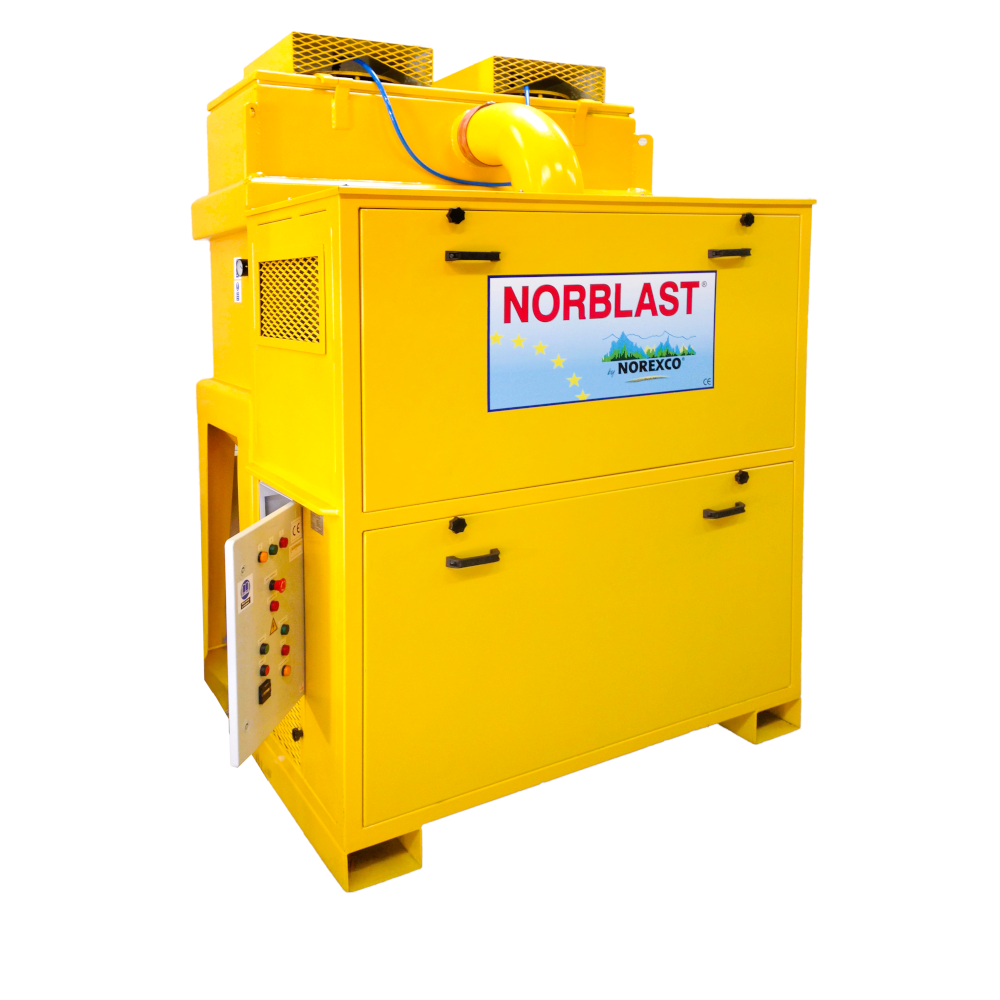

Vacuum Systems VR Series
in stock
NOREXCO® offers a range of high-performance vacuum systems capable of handling volumes from 0.8 to 9.5 tonnes per hour. Each system is equipped with specially designed recovery silos, available in capacities ranging from 1,000 to 5,000 liters, depending on the model.These units efficiently extract all types of used abrasives and ensure fast transfer from one point to another. Designed to manage large volumes, they are particularly well-suited for emptying tanks or storage silos, even when access is difficult or depths are significant.
Key Advantages...
-
- Throughput from 800 to 9,500 kg/h
- Hose lengths up to 100 m
- Handles elevation differences from 10 to 30 m
- Secure control panel
- High-efficiency particle filters
- Integrated storage silo with separator
- Significant time saving
- Reduces labor requirements
- Fast return on investment
Typical Applications...
- Storage tanks and reservoirs
- Ship ballasts and industrial tanks
- Complex or hard-to-reach environments
Technical Specifications
| Different Models of NORBLAST® Vacuum Systems | ||||||||
|---|---|---|---|---|---|---|---|---|
| Specifications | VR7.7 | VR18.5 | VR30 | VR37 | VR45 | VR55 | VR75 | VR90 |
| Motor (Kw) | 7.5 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 |
| Airflow (m3/min) | 4 | 12.5 | 18 | 25.5 | 34 | 43 | 55 | 72 |
| Capacity (T/h) | 0.8 | 1.2 | 2.4 | 3 | 4 | 6 | 8 | 9.5 |
| Storage tank(m3) | 1 | 1.5 | 1.5 | 1.5 | 3.5 | 3.5 | 3.5 | 5 |
 |
Custom-Built on RequestCustom versions can be developed to meet specific needs (e.g. power rating, footprint, ATEX environment, color, etc.). |
