Reference:
SOFTGOM® 35
The essential ally for every mission
The patented SOFTGOM® 35 soft-blasting system with permanent-pressure tank, adjustable from 0.1 to 8.5 bar, is a set available in dry (aero) or wet (hydro) blasting versions for stripping a variety of surfaces such as wood, stone, brick, plastics like boat polyester for example, as well as various ferrous and non-ferrous metals. Ideal for use on medium-scale worksites.
Patented product
SOFT-G35 technical specifications
Capacity
35 L
Recommended grain size
0.40 mm
Pressure adjustment
0.1 to 8.5 bar
Dimensions (L x W x H)
550 x 750 x 900 mm
Weight
55 kg
NC17P technical specifications
Permissible flow
2000 L/min – 120 m3/h
Motor power type
Pneumatic
Connection diameter
1”
Dimensions (L x W x H)
650 x 250 x 700 mm
Weight
19 kg

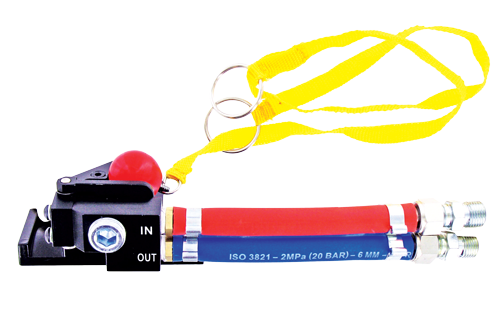

Optimal comfort
All our SOFTGOM® machines are fitted with an anti-fatigue handle.
Reference
Blasting and nozzle type
Dry
Wet
Aero included
Blasting hose Ø
Hose length
Min. compressor flow
Optional
SOFT-G35
NX nozzle
19 mm
20 m
2160 L/min
APV115/135 (with 4 mm nozzle max.)
SOFT-G35/SA
NX nozzle
19 mm
20 m
2160 L/min
APV115/135 (with 4 mm nozzle max.)
SOFT-G35-2
NX nozzle
NOB1438 nozzle
19 mm
20 m
3000 L/min
APV115/135 (with 4 mm nozzle max.)
SOFT-G35/SA-2
NY nozzle
NOB1438 nozzle
19 mm
20 m
3000 L/min
APV115/135 (with 4 mm nozzle max.)
SOFT-1020
SOFTGOM® PPE kit (optional) including: NOB4800 helmet, NOB4320/2 breathable air filter and 20 metres of breathable-air hose.
All versions are supplied with: remote control, air-pressure regulation system, cyclonic settling filter, SOFTGOM® NOB800 metering unit with patented device and built-in vibrator, NOB3000 anti-fatigue handle, NAB4948 helmet, NAB4949 hearing protection, air blower with hose, screen and lid. The SOFT-G35-2 wet-blaster is delivered with a hydro-blasting nozzle as well as a dry-blasting nozzle.
Patented technical innovations
The very first range of permanent-pressure soft-blasters
A NOREXCO® exclusive
Conventional soft-blasters with depressurisation
New-generation SOFGOM® soft-blasters
Condensation
Tank depressurised each time the handle is released → condensation forms, clogging
Under permanent pressure even when the handle is released → no condensation, dry abrasive
Permanently pressurised tank with a piloted metering unit
Some competitors use a piloted metering unit that closes automatically when the handle is released. → This system requires a pilot pressure with no pressure drop (6–7 bar): below that, the setting drifts and metering becomes unstable, or even impossible
No piloted metering unit → No malfunction caused by too low a pilot pressure. Stable, regular, continuous metering, even if the pressure drops
Abrasive consumption (manual metering unit)
With a manual metering unit, the abrasive keeps flowing after the handle is released. On restart, the projection is saturated before stabilising, causing significant abrasive waste
Abrasive savings thanks to a clean, instant stop of the flow
Technology
Conventional system, unchanged for years. Irregular restarts, unstable flow
New generation, unique on the market. Patented cut-off → perfectly regular, laminar flow for over 40 min at 4.5 bar
Made in France in our workshops in Haute-Savoie
After-sales service for overhauls and maintenance
Designed for rental with rugged machines and reinforced components. Simple start-up.
Immediate profitability: fast ROI from the very first rentals. Pricing tailored to professionals.
Easy to maintain with easy access to wear parts and simplified maintenance.
Complete support: hands-on training, rental info sheets ready to hand to the customer. Responsive after-sales service, spare parts available.
